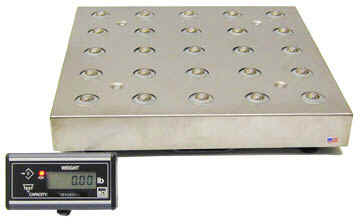

NCI 7885
(shown with optional ball transfer top)
| Part Number |
Capacity |
Platform |
Price |
| NCI 7885-150 |
150
lb x 0.05 |
18"
x 18" |
$600 |
| NCI 7885-150 with
ball transfer top |
150
lb x 0.05 |
18"
x 18" |
$775 |
Features & Benefits:
Remote Display Six-digit LCD display housed in an extruded enclosure with a
7 foot cable, connected via RJ 45 connector on the rear of the scale.
Display Controls ZERO:
Includes Auto Zero Tracking or Manual push button to re-establish zero
reference. TEST: Runs a diagnostic test to ensure scales is fully functional,
and allows a real-time view of internal settings. Construction Stainless steel
weight platter, powder painted 7 gauge steel weigh bridge and base plate. Field
Calibration Alternate span points can simplify field calibration by using less
than full capacity weights. Can be set-up as either decimal pound or kilogram.
RS-232 cable Included with each scale, DB 9-pin, null modem, female connector
allows you to connect to a PC. Emulation Protocols Standard NCI default with
field configurable settings of 8213, 3835, SMA, and Auto Weight Send. This
allows you to select compatible scale communication settings or scale drivers
during field installation when interfacing with shipping software programs or
host devices.
Specifications
Capacity (lb) Capacity (kg)
100 x 0.02 lb* 50 x 0.01 kg*
150 x 0.05 lb 60 x 0.02 kg**
Note: Default configuration as postal weight classifier.
* Custom Configuration
**Metric weighing can be configured in the field during calibration.
Internal Resolution: 1 part in 120,000.
Dimensions: 18.0" x 18.0" x 3.0" (457mm x 457mm x 76mm).
Power:120 VAC (+10% -15%), 60 Hz, standard 3-wire ground.
Operating Environment:
Temperature: 42° F to 104° F (5° C to 40° C)
Relative Humidity: 10 to 95% (non-condensing).
Agency Approvals:
United States: NTEP approved for use in Class III operations
Canada: Canada Weights and Measures approval pending.
Input/Output: RS-232, bi-directional, configurable 1200 - 19.2K baud. Transmits
weight and scale status whenever ASCII “W”
is sent by a remote device.
Shipping Weight: 47 lbs/22 kg, standard configuration.
