SW II Race Car scale

Click here to see our complete line of Race Car scales!

At last, here’s the scale system that auto, van, and trailer manufacturers have been asking for. Intercomp’s unique SW~ design provides all the flexibility that’s needed to fine tune weight and balance to varying design criteria. To see what we mean, check these standard features:

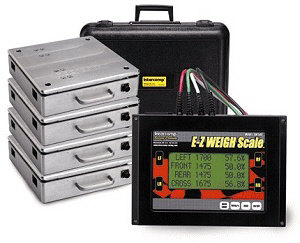

Four scale platforms and a portable weight indicator.  The weight display will show Total weight, left side, right side, front, back, individual wheel weights and percent by wheel.  Platforms are 15" x 15" x 3" high.  Each platform weighs 16 lbs.  Powered by (6) internal "AA" nicad batteries (included).

High visibility liquid crystal display: Simultaneously reads out 4 lines of 2.0 characters each (SW Deluxe). Shows: (1) individual weight of each wheel; (1) percentage of total weight on each wheel; (3) LR and RF total weight plus percentage; RR and LF total weight plus percentage; (5) all wheel weights plus percentages at the same time (SW Deluxe); (6) plus all other possible combinations.

Permits “fine tuning” of vehicle weights and balance to get optimal weight distribution.

Built-in self-diagnostics to check memory, display, keypad, weighing channels, power supply and weigh pads.

Calibration — allows on-site user calibration. Shows weights in pounds or kilograms

Push button zero.

High accuracy in three models: 1/10 of 1%.

Available in two system capacities:
4000 lb / 1800 kg
   (1000 lb /450 kg I pad)
6000 lb /1800 kg
   (1.500 lb I 700 kg I pad)

Power: 110-volt AC external 12-volt AC/DC and internal, AA-size nickel cadmium rechargeable batteries.

Automatic turn-off to extend battery life.

Low battery indicator - tells user when batteries need recharging.

Convenient size pads: 15” x 15” each to accept a wide range of wheel sizes.

Each system consists of 4 weigh pads, cables, control box (with case), battery recharger and instruction manuaL
